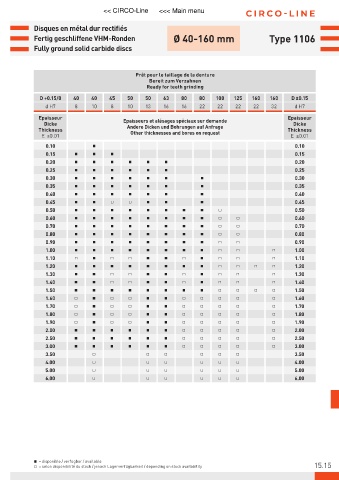

Page 727 - 21-036 APPLITEC catalogue.indb

<< CIRCO-Line <<< Main menu CIRC O-LINE

Disques en métal dur rectifiés
Fertig geschliffene VHM-Ronden Ø 40-160 mm Type 1106
Fully ground solid carbide discs

Prêt pour le taillage de la denture
Bereit zum Verzahnen
Ready for teeth grinding
D +0.15/0 40 40 45 50 50 63 80 80 100 125 160 160 D ±0.15
d H7 8 10 8 10 13 16 16 22 22 22 22 32 d H7
Epaisseur Epaisseurs et alésages spéciaux sur demande Epaisseur
Dicke Dicke
Thickness Andere Dicken und Bohrungen auf Anfrage Thickness
Other thicknesses and bores on request
E ±0.01 E ±0.01
0.10 Ŷ 0.10
0.15 Ŷ Ŷ Ŷ 0.15
0.20 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 0.20
0.25 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 0.25
0.30 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 0.30
0.35 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 0.35
0.40 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 0.40
0.45 Ŷ Ŷ Ƒ Ƒ Ŷ Ŷ Ŷ 0.45
0.50 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ 0.50
0.60 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ƒ 0.60
0.70 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ƒ 0.70
0.80 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ƒ 0.80
0.90 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ƒ 0.90
1.00 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ƒ Ƒ 1.00
1.10 Ƒ Ŷ Ƒ Ƒ Ŷ Ŷ Ƒ Ŷ Ƒ Ƒ Ƒ 1.10
1.20 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ƒ Ƒ Ƒ 1.20
1.30 Ŷ Ŷ Ƒ Ƒ Ŷ Ŷ Ƒ Ŷ Ƒ Ƒ Ƒ 1.30
1.40 Ŷ Ŷ Ƒ Ƒ Ŷ Ŷ Ƒ Ŷ Ƒ Ƒ Ƒ 1.40
1.50 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ƒ Ƒ Ƒ 1.50
1.60 Ƒ Ŷ Ƒ Ƒ Ŷ Ŷ Ƒ Ƒ Ƒ Ƒ Ƒ 1.60
1.70 Ƒ Ŷ Ƒ Ƒ Ŷ Ŷ Ƒ Ƒ Ƒ Ƒ Ƒ 1.70
1.80 Ƒ Ŷ Ƒ Ƒ Ŷ Ŷ Ƒ Ƒ Ƒ Ƒ Ƒ 1.80
1.90 Ƒ Ŷ Ƒ Ƒ Ŷ Ŷ Ƒ Ƒ Ƒ Ƒ Ƒ 1.90
2.00 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ƒ Ƒ Ƒ Ƒ 2.00
2.50 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ƒ Ƒ Ƒ Ƒ 2.50
3.00 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ƒ Ƒ Ƒ Ƒ 3.00
3.50 Ƒ Ƒ Ƒ Ƒ Ƒ Ƒ 3.50
4.00 Ƒ Ƒ Ƒ Ƒ Ƒ Ƒ 4.00
5.00 Ƒ Ƒ Ƒ Ƒ Ƒ Ƒ 5.00
6.00 Ƒ Ƒ Ƒ Ƒ Ƒ Ƒ 6.00

Ŷ = disponible / verfügbar / available
15.15
Ƒ = selon disponibilité du stock / jenach Lagerverfügbarkeit / depending on stock availability
