<< CIRCO-Line <<< Main menu CIRC O-LINE

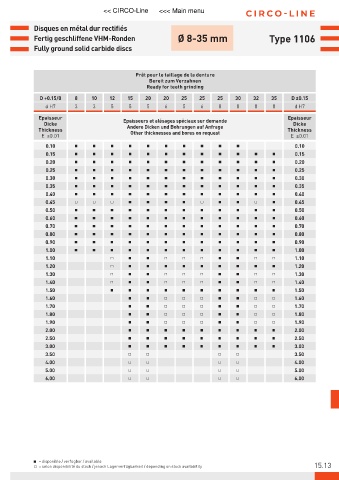

Disques en métal dur rectifiés
Fertig geschliffene VHM-Ronden Ø 8-35 mm Type 1106
Fully ground solid carbide discs

Prêt pour le taillage de la denture
Bereit zum Verzahnen
Ready for teeth grinding
D +0.15/0 8 10 12 15 20 20 25 25 25 30 32 35 D ±0.15
d H7 3 3 5 5 5 6 5 6 8 8 8 8 d H7
Epaisseur Epaisseurs et alésages spéciaux sur demande Epaisseur
Dicke Dicke
Thickness Andere Dicken und Bohrungen auf Anfrage Thickness
Other thicknesses and bores on request
E ±0.01 E ±0.01
0.10 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 0.10
0.15 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 0.15
0.20 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 0.20
0.25 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 0.25
0.30 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 0.30
0.35 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 0.35
0.40 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 0.40
0.45 Ƒ Ƒ Ƒ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ Ŷ Ƒ Ŷ 0.45
0.50 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 0.50
0.60 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 0.60
0.70 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 0.70
0.80 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 0.80
0.90 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 0.90
1.00 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 1.00
1.10 Ƒ Ŷ Ŷ Ƒ Ƒ Ƒ Ŷ Ŷ Ƒ Ƒ 1.10
1.20 Ƒ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 1.20
1.30 Ƒ Ŷ Ŷ Ƒ Ƒ Ƒ Ŷ Ŷ Ƒ Ƒ 1.30
1.40 Ƒ Ŷ Ŷ Ƒ Ƒ Ƒ Ŷ Ŷ Ƒ Ƒ 1.40
1.50 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 1.50
1.60 Ŷ Ŷ Ƒ Ƒ Ƒ Ŷ Ŷ Ƒ Ƒ 1.60
1.70 Ŷ Ŷ Ƒ Ƒ Ƒ Ŷ Ŷ Ƒ Ƒ 1.70
1.80 Ŷ Ŷ Ƒ Ƒ Ƒ Ŷ Ŷ Ƒ Ƒ 1.80
1.90 Ŷ Ŷ Ƒ Ƒ Ƒ Ŷ Ŷ Ƒ Ƒ 1.90
2.00 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 2.00
2.50 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 2.50
3.00 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 3.00
3.50 Ƒ Ƒ Ƒ Ƒ 3.50
4.00 Ƒ Ƒ Ƒ Ƒ 4.00
5.00 Ƒ Ƒ Ƒ Ƒ 5.00
6.00 Ƒ Ƒ Ƒ Ƒ 6.00

Ŷ = disponible / verfügbar / available
Ƒ = selon disponibilité du stock / jenach Lagerverfügbarkeit / depending on stock availability 15.13
