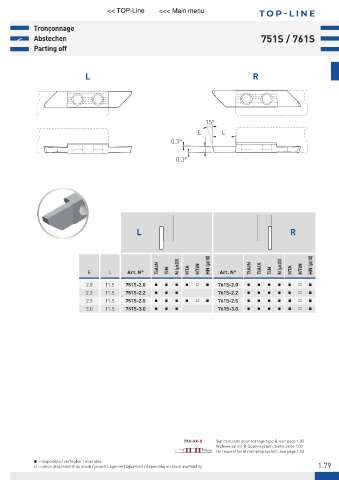

Page 83 - 21-036 APPLITEC catalogue.indb
P. 83
<< TOP-Line <<< Main menu T OP -LINE
Tronçonnage
< Abstechen 751S / 761S
Parting off
L R
15°
E L
0.3°
0.3°
L R
TiAlN N (μk20) HTA HTiN HN (μk10) TiAlN TiAlX N (μk20) HTA HTiN HN (μk10)
E L Art. N° TiN Art. N° TiN
2.0 11.5 751S-2.0 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 761S-2.0 Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
2.2 11.5 751S-2.2 Ŷ Ŷ Ŷ 761S-2.2 Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
2.5 11.5 751S-2.5 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 761S-2.5 Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
3.0 11.5 751S-3.0 Ŷ Ŷ Ŷ 761S-3.0 Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
7XX-XX-B Sur demande pour serrage type B, voir page 1.03
Wahlweise mit B-Spannsystem, siehe Seite 1.03
On request for B clamping system, see page 1.03
Ŷ = disponible / verfügbar / available
1.79
Ƒ = selon disponibilité du stock / jenach Lagerverfügbarkeit / depending on stock availability
