P R O-LINE << PRO-Line <<< Main menu

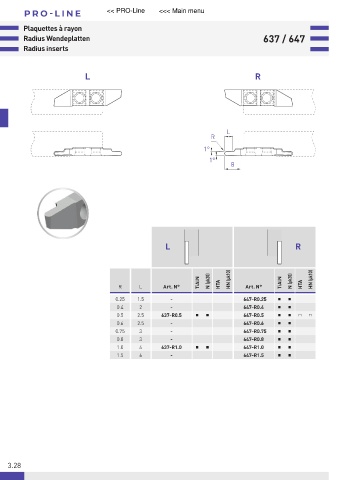

Plaquettes à rayon
Radius Wendeplatten 637 / 647
Radius inserts

L R

L
R
1°
1°
8

L R

TiAlN N (μk20) HTA HN (μk10) TiAlN N (μk20) HTA HN (μk10)
R L Art. N° Art. N°
0.25 1.5 - 647-R0.25 Ŷ Ŷ
0.4 2 - 647-R0.4 Ŷ Ŷ
0.5 2.5 637-R0.5 Ŷ Ŷ 647-R0.5 Ŷ Ŷ Ƒ Ƒ
0.6 2.5 - 647-R0.6 Ŷ Ŷ
0.75 3 - 647-R0.75 Ŷ Ŷ
0.8 3 - 647-R0.8 Ŷ Ŷ
1.0 4 637-R1.0 Ŷ Ŷ 647-R1.0 Ŷ Ŷ
1.5 6 - 647-R1.5 Ŷ Ŷ

3.28
