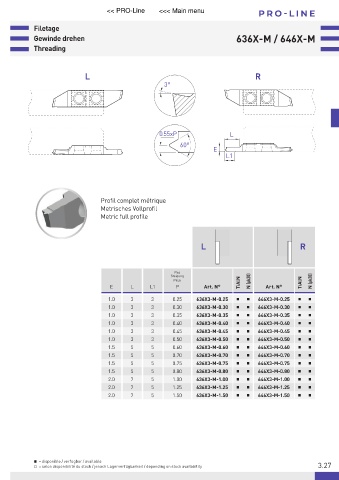

Page 225 - 21-036 APPLITEC catalogue.indb

<< PRO-Line <<< Main menu P R O-LINE

Filetage
Gewinde drehen 636X-M / 646X-M
Threading

L R
3°

0.55xP L
60°
E
L1

Profil complet métrique
Metrisches Vollprofil
Metric full profile

L R

Pas
Steigung
Pitch TiAlN N (μk20) TiAlN N (μk20)
E L L1 P Art. N° Art. N°
1.0 3 3 0.25 636X3-M-0.25 Ŷ Ŷ 646X3-M-0.25 Ŷ Ŷ
1.0 3 3 0.30 636X3-M-0.30 Ŷ Ŷ 646X3-M-0.30 Ŷ Ŷ
1.0 3 3 0.35 636X3-M-0.35 Ŷ Ŷ 646X3-M-0.35 Ŷ Ŷ
1.0 3 3 0.40 636X3-M-0.40 Ŷ Ŷ 646X3-M-0.40 Ŷ Ŷ
1.0 3 3 0.45 636X3-M-0.45 Ŷ Ŷ 646X3-M-0.45 Ŷ Ŷ
1.0 3 3 0.50 636X3-M-0.50 Ŷ Ŷ 646X3-M-0.50 Ŷ Ŷ
1.5 5 5 0.60 636X3-M-0.60 Ŷ Ŷ 646X3-M-0.60 Ŷ Ŷ
1.5 5 5 0.70 636X3-M-0.70 Ŷ Ŷ 646X3-M-0.70 Ŷ Ŷ
1.5 5 5 0.75 636X3-M-0.75 Ŷ Ŷ 646X3-M-0.75 Ŷ Ŷ
1.5 5 5 0.80 636X3-M-0.80 Ŷ Ŷ 646X3-M-0.80 Ŷ Ŷ
2.0 7 5 1.00 636X3-M-1.00 Ŷ Ŷ 646X3-M-1.00 Ŷ Ŷ
2.0 7 5 1.25 636X3-M-1.25 Ŷ Ŷ 646X3-M-1.25 Ŷ Ŷ
2.0 7 5 1.50 636X3-M-1.50 Ŷ Ŷ 646X3-M-1.50 Ŷ Ŷ

Ŷ = disponible / verfügbar / available
3.27
Ƒ = selon disponibilité du stock / jenach Lagerverfügbarkeit / depending on stock availability
