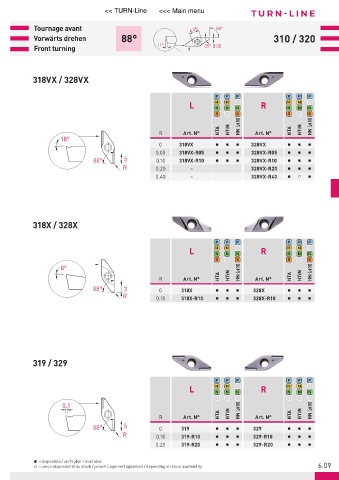

Page 283 - 21-036 APPLITEC catalogue.indb

<< TURN-Line <<< Main menu T URN-LINE

Tournage avant 6.35 88°
Vorwärts drehen 88° 310 / 320
11° 35° (1.5)
Front turning

318VX / 328VX

P P P P P P
M M M M
L N N N R N N N
S S S S

HTA HTiN HN (μk10) HTA HTiN HN (μk10)
R Art. N° Art. N°
18°
0 318VX Ŷ Ŷ Ŷ 328VX Ŷ Ŷ Ŷ
0.05 318VX-R05 Ŷ Ŷ Ŷ 328VX-R05 Ŷ Ŷ Ŷ
88° 5 0.10 318VX-R10 Ŷ Ŷ Ŷ 328VX-R10 Ŷ Ŷ Ŷ
R 0.20 - 328VX-R20 Ŷ Ŷ Ŷ
0.40 - 328VX-R40 Ŷ Ƒ Ŷ

318X / 328X

P P P P P P
L M N M N N R M N M N N
S S S S
8°
HTA HTiN HN (μk10) HTA HTiN HN (μk10)
R Art. N° Art. N°
88° 3 0 318X Ŷ Ŷ Ŷ 328X Ŷ Ŷ Ŷ
R
0.10 318X-R10 Ŷ Ŷ Ŷ 328X-R10 Ŷ Ŷ Ŷ

319 / 329

P P P P P P
L M N M N N R M N M N N

0.1
HTA HTiN HN (μk10) HTA HTiN HN (μk10)
R Art. N° Art. N°
88° 5 0 319 Ŷ Ŷ Ŷ 329 Ŷ Ŷ Ŷ
R 0.10 319-R10 Ŷ Ŷ Ŷ 329-R10 Ŷ Ŷ Ŷ
0.20 319-R20 Ŷ Ŷ Ŷ 329-R20 Ŷ Ŷ Ŷ

Ŷ = disponible / verfügbar / available
6.09
Ƒ = selon disponibilité du stock / jenach Lagerverfügbarkeit / depending on stock availability
