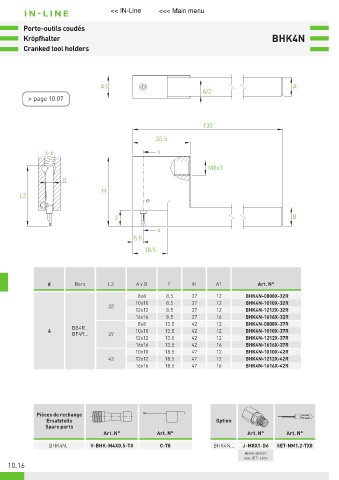

Porte-outils coudés
Kröpfhalter BHK4N
Cranked tool holders

A1 A
A/2
> page 10.07

130

30.5
x-x x
M8x1
d
H
L3

F B
x

5.5
18.5

d Bars L3 A x B F H A1 Art. N°

8x8 8.5 37 12 BHK4N-0808X-32R
10x10 8.5 37 12 BHK4N-1010X-32R
32
12x12 8.5 37 12 BHK4N-1212X-32R
16x16 8.5 37 16 BHK4N-1616X-32R
8x8 13.5 42 12 BHK4N-0808X-37R
BB4R…
4 10x10 13.5 42 12 BHK4N-1010X-37R
BF4R… 37
12x12 13.5 42 12 BHK4N-1212X-37R
16x16 13.5 42 16 BHK4N-1616X-37R
10x10 18.5 47 12 BHK4N-1010X-42R
42 12x12 18.5 47 12 BHK4N-1212X-42R
16x16 18.5 47 16 BHK4N-1616X-42R

Pièces de rechange
Ersatzteile Option
Spare parts
Art. N° Art. N° Art. N° Art. N°
BHK4N… V-BHK-M4X0.5-T8 C-T8 BHK4N… J-M8X1-D6 SET-NM1.2-TX8
more option
see JET-Line
