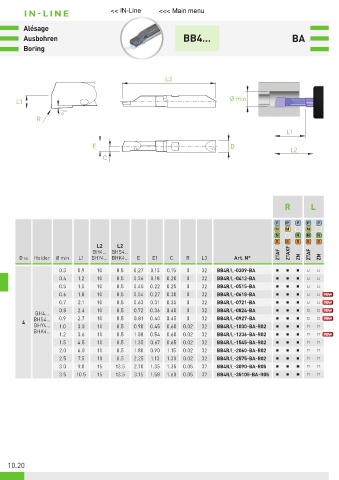

Page 426 - 21-036 APPLITEC catalogue.indb

IN-LINE << IN-Line <<< Main menu

Alésage
Ausbohren BB4… BA
Boring

L3

Ø min
E1
3°
R
L1

E D
L2
C

R L

P P P P P
M M M
N N N N
S S S S S
L2 L2
BH4… BHS4… ZTAF ZTAXF ZTAF
D h5 Holder Ø min L1 BHY4… BHK4… E E1 C R L3 Art. N° ZN ZN
0.3 0.9 10 8.5 0.27 0.13 0.15 0 32 BB4R/L-0309-BA Ŷ Ŷ Ŷ Ƒ Ƒ
0.4 1.2 10 8.5 0.36 0.18 0.20 0 32 BB4R/L-0412-BA Ŷ Ŷ Ŷ Ƒ Ƒ
0.5 1.5 10 8.5 0.45 0.22 0.25 0 32 BB4R/L-0515-BA Ŷ Ŷ Ŷ Ƒ Ƒ
0.6 1.8 10 8.5 0.54 0.27 0.30 0 32 BB4R/L-0618-BA Ŷ Ŷ Ŷ Ƒ Ƒ
0.7 2.1 10 8.5 0.63 0.31 0.35 0 32 BB4R/L-0721-BA Ŷ Ŷ Ŷ Ƒ Ƒ
0.8 2.4 10 8.5 0.72 0.36 0.40 0 32 BB4R/L-0824-BA Ŷ Ŷ Ŷ Ƒ Ƒ
BH4…
BHS4… 0.9 2.7 10 8.5 0.81 0.40 0.45 0 32 BB4R/L-0927-BA Ŷ Ŷ Ŷ Ƒ Ƒ
4
BHY4… 1.0 3.0 10 8.5 0.90 0.45 0.60 0.02 32 BB4R/L-1030-BA-R02 Ŷ Ŷ Ŷ Ƒ Ƒ
BHK4…
1.2 3.6 10 8.5 1.08 0.54 0.60 0.02 32 BB4R/L-1236-BA-R02 Ŷ Ŷ Ŷ Ƒ Ƒ
1.5 4.5 10 8.5 1.35 0.67 0.65 0.02 32 BB4R/L-1545-BA-R02 Ŷ Ŷ Ŷ Ƒ Ƒ
2.0 6.0 10 8.5 1.80 0.90 1.15 0.02 32 BB4R/L-2060-BA-R02 Ŷ Ŷ Ŷ Ƒ Ƒ
2.5 7.5 10 8.5 2.25 1.13 1.30 0.02 32 BB4R/L-2575-BA-R02 Ŷ Ŷ Ŷ Ƒ Ƒ
3.0 9.0 15 13.5 2.70 1.35 1.35 0.05 37 BB4R/L-3090-BA-R05 Ŷ Ŷ Ŷ Ƒ Ƒ
3.5 10.5 15 13.5 3.15 1.58 1.60 0.05 37 BB4R/L-35105-BA-R05 Ŷ Ŷ Ŷ Ƒ Ƒ

10.20
