<< IN-Line <<< Main menu IN-LINE

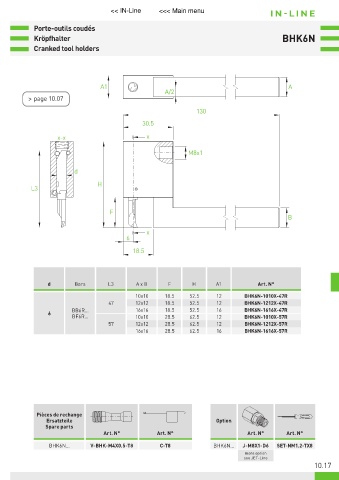

Porte-outils coudés
Kröpfhalter BHK6N
Cranked tool holders

A1 A
A/2
> page 10.07

130
30.5
x-x x

M8x1

d
H
L3

F
B

x
6
18.5

d Bars L3 A x B F H A1 Art. N°

10x10 18.5 52.5 12 BHK6N-1010X-47R
47 12x12 18.5 52.5 12 BHK6N-1212X-47R
BB6R… 16x16 18.5 52.5 16 BHK6N-1616X-47R
6
BF6R… 10x10 28.5 62.5 12 BHK6N-1010X-57R
57 12x12 28.5 62.5 12 BHK6N-1212X-57R
16x16 28.5 62.5 16 BHK6N-1616X-57R

Pièces de rechange
Ersatzteile Option
Spare parts
Art. N° Art. N° Art. N° Art. N°
BHK6N… V-BHK-M4X0.5-T8 C-T8 BHK6N… J-M8X1-D6 SET-NM1.2-TX8
more option
see JET-Line
10.17
