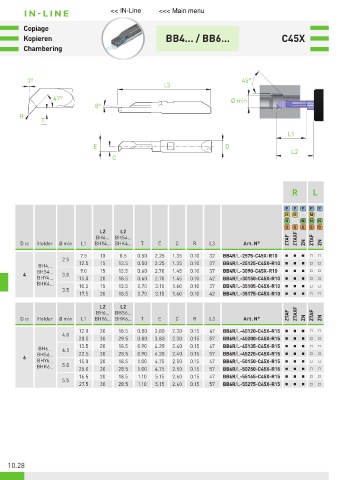

Page 434 - 21-036 APPLITEC catalogue.indb

IN-LINE << IN-Line <<< Main menu

Copiage
Kopieren BB4… / BB6… C45X
Chambering

3° 45°
L3
47° Ø min
8°
R
T
L1
E D
L2
C

R L

P P P P P
M M M
N N N N
S S S S S
L2 L2
BH4… BHS4… ZTAF ZTAXF ZTAF
D h5 Holder Ø min L1 BHY4… BHK4… T E C R L3 Art. N° ZN ZN
7.5 10 8.5 0.50 2.25 1.35 0.10 32 BB4R/L-2575-C45X-R10 Ŷ Ŷ Ŷ Ƒ Ƒ
2.5
12.5 15 13.5 0.50 2.25 1.35 0.10 37 BB4R/L-25125-C45X-R10 Ŷ Ŷ Ŷ Ƒ Ƒ
BH4…
BHS4… 9.0 15 13.5 0.60 2.70 1.45 0.10 37 BB4R/L-3090-C45X-R10 Ŷ Ŷ Ŷ Ƒ Ƒ
4 3.0
BHY4… 15.0 20 18.5 0.60 2.70 1.45 0.10 42 BB4R/L-30150-C45X-R10 Ŷ Ŷ Ŷ Ƒ Ƒ
BHK4… 10.5 15 13.5 0.70 3.15 1.60 0.10 37 BB4R/L-35105-C45X-R10 Ŷ Ŷ Ŷ Ƒ Ƒ
3.5
17.5 20 18.5 0.70 3.15 1.60 0.10 42 BB4R/L-35175-C45X-R10 Ŷ Ŷ Ŷ Ƒ Ƒ
L2 L2
BH6… BHS6… ZTAF ZTAXF ZTAF
D h5 Holder Ø min L1 BHY6… BHK6… T E C R L3 Art. N° ZN ZN
12.0 20 18.5 0.80 3.80 2.30 0.15 47 BB6R/L-40120-C45X-R15 Ŷ Ŷ Ŷ Ƒ Ƒ
4.0
20.0 30 28.5 0.80 3.80 2.30 0.15 57 BB6R/L-40200-C45X-R15 Ŷ Ŷ Ŷ Ƒ Ƒ
13.5 20 18.5 0.90 4.28 2.40 0.15 47 BB6R/L-45135-C45X-R15 Ŷ Ŷ Ŷ Ƒ Ƒ
BH6… 4.5
BHS6… 22.5 30 28.5 0.90 4.28 2.40 0.15 57 BB6R/L-45225-C45X-R15 Ŷ Ŷ Ŷ Ƒ Ƒ
6
BHY6… 15.0 20 18.5 1.00 4.75 2.50 0.15 47 BB6R/L-50150-C45X-R15 Ŷ Ŷ Ŷ Ƒ Ƒ
BHK6… 5.0
25.0 30 28.5 1.00 4.75 2.50 0.15 57 BB6R/L-50250-C45X-R15 Ŷ Ŷ Ŷ Ƒ Ƒ
16.5 20 18.5 1.10 5.15 2.60 0.15 47 BB6R/L-55165-C45X-R15 Ŷ Ŷ Ŷ Ƒ Ƒ
5.5
27.5 30 28.5 1.10 5.15 2.60 0.15 57 BB6R/L-55275-C45X-R15 Ŷ Ŷ Ŷ Ƒ Ƒ

10.28
