<< IN-Line <<< Main menu IN-LINE

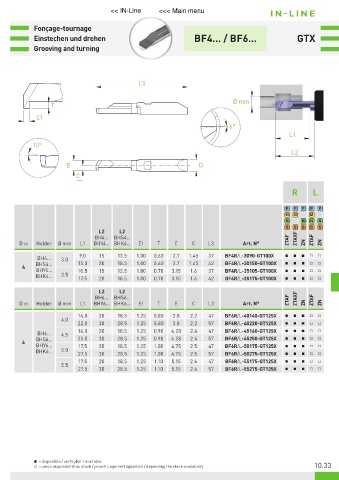

Fonçage-tournage
Einstechen und drehen BF4… / BF6… GTX
Grooving and turning

L3

Ø min
T
E1
6°
L1
10°
L2
E D
C
R L

P P P P P
M M M
N N N N
S S S S S
L2 L2
BH4… BHS4… ZTAF ZTAXF ZTAF
D h5 Holder Ø min L1 BHY4… BHK4… E1 T E C L3 Art. N° ZN ZN
9.0 15 13.5 1.00 0.60 2.7 1.45 37 BF4R/L-3090-GT100X Ŷ Ŷ Ŷ Ƒ Ƒ
BH4… 3.0
BHS4… 15.0 20 18.5 1.00 0.60 2.7 1.45 42 BF4R/L-30150-GT100X Ŷ Ŷ Ŷ Ƒ Ƒ
4
BHY4… 10.5 15 13.5 1.00 0.70 3.15 1.6 37 BF4R/L-35105-GT100X Ŷ Ŷ Ŷ Ƒ Ƒ
BHK4… 3.5
17.5 20 18.5 1.00 0.70 3.15 1.6 42 BF4R/L-35175-GT100X Ŷ Ŷ Ŷ Ƒ Ƒ
L2 L2
BH6… BHS6… ZTAF ZTAXF ZTAF
D h5 Holder Ø min L1 BHY6… BHK6… E1 T E C L3 Art. N° ZN ZN
14.0 20 18.5 1.25 0.80 3.8 2.2 47 BF6R/L-40140-GT125X Ŷ Ŷ Ŷ Ƒ Ƒ
4.0
22.0 30 28.5 1.25 0.80 3.8 2.2 57 BF6R/L-40220-GT125X Ŷ Ŷ Ŷ Ƒ Ƒ
16.0 20 18.5 1.25 0.90 4.28 2.4 47 BF6R/L-45160-GT125X Ŷ Ŷ Ŷ Ƒ Ƒ
BH6… 4.5
BHS6… 25.0 30 28.5 1.25 0.90 4.28 2.4 57 BF6R/L-45250-GT125X Ŷ Ŷ Ŷ Ƒ Ƒ
6
BHY6… 17.5 20 18.5 1.25 1.00 4.75 2.5 47 BF6R/L-50175-GT125X Ŷ Ŷ Ŷ Ƒ Ƒ
BHK6… 5.0
27.5 30 28.5 1.25 1.00 4.75 2.5 57 BF6R/L-50275-GT125X Ŷ Ŷ Ŷ Ƒ Ƒ
17.5 20 18.5 1.25 1.10 5.15 2.6 47 BF6R/L-55175-GT125X Ŷ Ŷ Ŷ Ƒ Ƒ
5.5
27.5 30 28.5 1.25 1.10 5.15 2.6 57 BF6R/L-55275-GT125X Ŷ Ŷ Ŷ Ƒ Ƒ

Ŷ = disponible / verfügbar / available
10.33
Ƒ = selon disponibilité du stock / jenach Lagerverfügbarkeit / depending the stock availability
