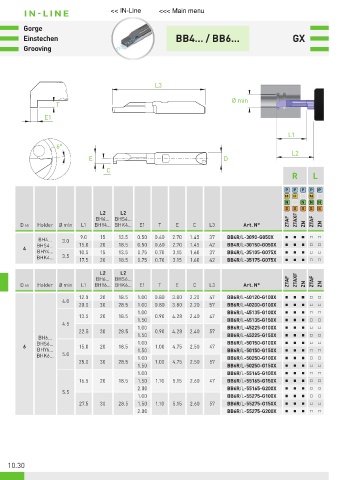

Page 436 - 21-036 APPLITEC catalogue.indb

IN-LINE << IN-Line <<< Main menu

Gorge
Einstechen BB4… / BB6… GX
Grooving

L3

Ø min
T
E1

L1
6°
L2
E D
C
R L
P P P P P
M M M
N N N N
S S S S S
L2 L2
BH4… BHS4… ZTAF ZTAXF ZTAF
D h5 Holder Ø min L1 BHY4… BHK4… E1 T E C L3 Art. N° ZN ZN
9.0 15 13.5 0.50 0.60 2.70 1.45 37 BB4R/L-3090-G050X Ŷ Ŷ Ŷ Ƒ Ƒ
BH4… 3.0
BHS4… 15.0 20 18.5 0.50 0.60 2.70 1.45 42 BB4R/L-30150-G050X Ŷ Ŷ Ŷ Ƒ Ƒ
4
BHY4… 10.5 15 13.5 0.75 0.70 3.15 1.60 37 BB4R/L-35105-G075X Ŷ Ŷ Ŷ Ƒ Ƒ
BHK4… 3.5
17.5 20 18.5 0.75 0.70 3.15 1.60 42 BB4R/L-35175-G075X Ŷ Ŷ Ŷ Ƒ Ƒ
L2 L2
BH6… BHS6… ZTAF ZTAXF ZTAF
D h5 Holder Ø min L1 BHY6… BHK6… E1 T E C L3 Art. N° ZN ZN
12.0 20 18.5 1.00 0.80 3.80 2.20 47 BB6R/L-40120-G100X Ŷ Ŷ Ŷ Ƒ Ƒ
4.0
20.0 30 28.5 1.00 0.80 3.80 2.20 57 BB6R/L-40200-G100X Ŷ Ŷ Ŷ Ƒ Ƒ
1.00 BB6R/L-45135-G100X Ŷ Ŷ Ŷ Ƒ Ƒ
13.5 20 18.5 0.90 4.28 2.40 47
1.50 BB6R/L-45135-G150X Ŷ Ŷ Ŷ Ƒ Ƒ
4.5
1.00 BB6R/L-45225-G100X Ŷ Ŷ Ŷ Ƒ Ƒ
22.5 30 28.5 0.90 4.28 2.40 57
1.50 BB6R/L-45225-G150X Ŷ Ŷ Ŷ Ƒ Ƒ
BH6…
BHS6… 1.00 BB6R/L-50150-G100X Ŷ Ŷ Ŷ Ƒ Ƒ
6 15.0 20 18.5 1.00 4.75 2.50 47
BHY6… 1.50 BB6R/L-50150-G150X Ŷ Ŷ Ŷ Ƒ Ƒ
BHK6… 5.0 1.00 BB6R/L-50250-G100X Ŷ Ŷ Ŷ Ƒ Ƒ
25.0 30 28.5 1.00 4.75 2.50 57
1.50 BB6R/L-50250-G150X Ŷ Ŷ Ŷ Ƒ Ƒ
1.00 BB6R/L-55165-G100X Ŷ Ŷ Ŷ Ƒ Ƒ
16.5 20 18.5 1.50 1.10 5.15 2.60 47 BB6R/L-55165-G150X Ŷ Ŷ Ŷ Ƒ Ƒ
2.00 BB6R/L-55165-G200X Ŷ Ŷ Ŷ Ƒ Ƒ
5.5
1.00 BB6R/L-55275-G100X Ŷ Ŷ Ŷ Ƒ Ƒ
27.5 30 28.5 1.50 1.10 5.15 2.60 57 BB6R/L-55275-G150X Ŷ Ŷ Ŷ Ƒ Ƒ
2.00 BB6R/L-55275-G200X Ŷ Ŷ Ŷ Ƒ Ƒ

10.30
