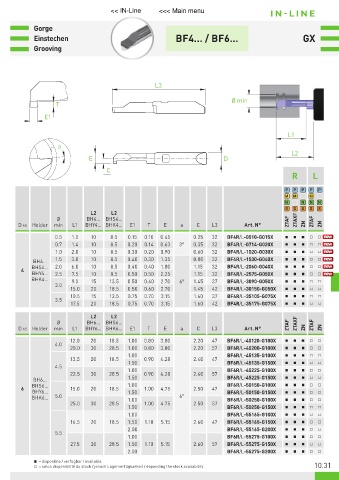

Page 437 - 21-036 APPLITEC catalogue.indb

<< IN-Line <<< Main menu IN-LINE

Gorge
Einstechen BF4… / BF6… GX
Grooving

L3

Ø min
T
E1

L1
a
L2
E D
C
R L
P P P P P
M M M
N N N N
S S S S S
L2 L2
Ø BH4… BHS4… ZTAF ZTAXF ZTAF
D h5 Holder min L1 BHY4… BHK4… E1 T E a C L3 Art. N° ZN ZN
0.5 1.0 10 8.5 0.15 0.10 0.45 0.25 32 BF4R/L-0510-G015X Ŷ Ŷ Ŷ Ƒ Ƒ
0.7 1.4 10 8.5 0.20 0.14 0.63 3° 0.35 32 BF4R/L-0714-G020X Ŷ Ŷ Ŷ Ƒ Ƒ
1.0 2.0 10 8.5 0.30 0.20 0.90 0.60 32 BF4R/L-1020-G030X Ŷ Ŷ Ŷ Ƒ Ƒ
1.5 3.0 10 8.5 0.40 0.30 1.35 0.80 32 BF4R/L-1530-G040X Ŷ Ŷ Ŷ Ƒ Ƒ
BH4…
BHS4… 2.0 6.0 10 8.5 0.40 0.40 1.80 1.15 32 BF4R/L-2060-G040X Ŷ Ŷ Ŷ Ƒ Ƒ
4
BHY4… 2.5 7.5 10 8.5 0.50 0.50 2.25 1.15 32 BF4R/L-2575-G050X Ŷ Ŷ Ŷ Ƒ Ƒ
BHK4… 9.0 15 13.5 0.50 0.60 2.70 6° 1.45 37 BF4R/L-3090-G050X Ŷ Ŷ Ŷ Ƒ Ƒ
3.0
15.0 20 18.5 0.50 0.60 2.70 1.45 42 BF4R/L-30150-G050X Ŷ Ŷ Ŷ Ƒ Ƒ
10.5 15 13.5 0.75 0.70 3.15 1.60 37 BF4R/L-35105-G075X Ŷ Ŷ Ŷ Ƒ Ƒ
3.5
17.5 20 18.5 0.75 0.70 3.15 1.60 42 BF4R/L-35175-G075X Ŷ Ŷ Ŷ Ƒ Ƒ
L2 L2
Ø BH6… BHS6… ZTAF ZTAXF ZTAF
D h5 Holder min L1 BHY6… BHK6… E1 T E a C L3 Art. N° ZN ZN
12.0 20 18.5 1.00 0.80 3.80 2.20 47 BF6R/L-40120-G100X Ŷ Ŷ Ŷ Ƒ Ƒ
4.0
20.0 30 28.5 1.00 0.80 3.80 2.20 57 BF6R/L-40200-G100X Ŷ Ŷ Ŷ Ƒ Ƒ
1.00 BF6R/L-45135-G100X Ŷ Ŷ Ŷ Ƒ Ƒ
13.5 20 18.5 0.90 4.28 2.40 47
1.50 BF6R/L-45135-G150X Ŷ Ŷ Ŷ Ƒ Ƒ
4.5
1.00 BF6R/L-45225-G100X Ŷ Ŷ Ŷ Ƒ Ƒ
22.5 30 28.5 0.90 4.28 2.40 57
BH6… 1.50 BF6R/L-45225-G150X Ŷ Ŷ Ŷ Ƒ Ƒ
BHS6… 1.00 BF6R/L-50150-G100X Ŷ Ŷ Ŷ Ƒ Ƒ
6 15.0 20 18.5 1.00 4.75 2.50 47
BHY6… 1.50 BF6R/L-50150-G150X Ŷ Ŷ Ŷ Ƒ Ƒ
5.0 6°
BHK6… 1.00 BF6R/L-50250-G100X Ŷ Ŷ Ŷ Ƒ Ƒ
25.0 30 28.5 1.00 4.75 2.50 57
1.50 BF6R/L-50250-G150X Ŷ Ŷ Ŷ Ƒ Ƒ
1.00 BF6R/L-55165-G100X Ŷ Ŷ Ŷ Ƒ Ƒ
16.5 20 18.5 1.50 1.10 5.15 2.60 47 BF6R/L-55165-G150X Ŷ Ŷ Ŷ Ƒ Ƒ
2.00 BF6R/L-55165-G200X Ŷ Ŷ Ŷ Ƒ Ƒ
5.5
1.00 BF6R/L-55275-G100X Ŷ Ŷ Ŷ Ƒ Ƒ
27.5 30 28.5 1.50 1.10 5.15 2.60 57 BF6R/L-55275-G150X Ŷ Ŷ Ŷ Ƒ Ƒ
2.00 BF6R/L-55275-G200X Ŷ Ŷ Ŷ Ƒ Ƒ
Ŷ = disponible / verfügbar / available
10.31
Ƒ = selon disponibilité du stock / jenach Lagerverfügbarkeit / depending the stock availability
