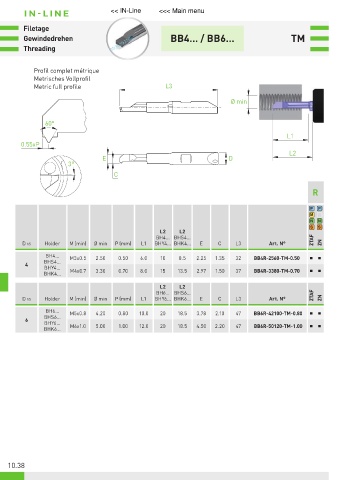

Filetage
Gewindedrehen BB4… / BB6… TM
Threading
Profil complet métrique
Metrisches Vollprofil
Metric full profile L3
Ø min
60°
L1
0.55xP
L2
E D
3°
C
R
P P
M
N N
S S
L2 L2
BH4… BHS4… ZTAF
D h5 Holder M (min) Ø min P (mm) L1 BHY4… BHK4… E C L3 Art. N° ZN
BH4… M3x0.5 2.50 0.50 6.0 10 8.5 2.25 1.35 32 BB4R-2560-TM-0.50 Ŷ Ŷ
BHS4…
4
BHY4… Ŷ Ŷ
BHK4… M4x0.7 3.30 0.70 8.0 15 13.5 2.97 1.50 37 BB4R-3380-TM-0.70
L2 L2
BH6… BHS6… ZTAF
D h5 Holder M (min) Ø min P (mm) L1 BHY6… BHK6… E C L3 Art. N° ZN
BH6… Ŷ Ŷ
BHS6… M5x0.8 4.20 0.80 10.0 20 18.5 3.78 2.10 47 BB6R-42100-TM-0.80
6
BHY6… M6x1.0 5.00 1.00 12.0 20 18.5 4.50 2.20 47 BB6R-50120-TM-1.00 Ŷ Ŷ
BHK6…
