Filetage

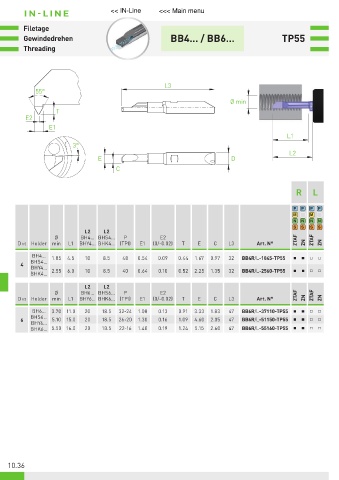

Gewindedrehen BB4… / BB6… TP55
Threading

L3
55°
Ø min
T
E2
E1
L1
3°
L2
E D
C

R L

P P P P
M M
N N N N
S S S S
L2 L2
Ø BH4… BHS4… P E2
D h5 Holder min L1 BHY4… BHK4… (TPI) E1 (0/-0.02) T E C L3 Art. N° ZTAF ZN ZTAF ZN
BH4… 1.85 4.5 10 8.5 48 0.54 0.09 0.44 1.67 0.97 32 BB4R/L-1845-TP55 Ŷ Ŷ Ƒ Ƒ
BHS4…
4
BHY4… Ŷ Ŷ Ƒ Ƒ
BHK4… 2.55 6.0 10 8.5 40 0.64 0.10 0.52 2.25 1.35 32 BB4R/L-2560-TP55
L2 L2
Ø BH6… BHS6… P E2
D h5 Holder min L1 BHY6… BHK6… (TPI) E1 (0/-0.02) T E C L3 Art. N° ZTAF ZN ZTAF ZN
BH6… 3.70 11.0 20 18.5 32-24 1.08 0.13 0.91 3.33 1.83 47 BB6R/L-37110-TP55 Ŷ Ŷ Ƒ Ƒ
BHS6…
6 5.10 15.0 20 18.5 26-20 1.30 0.16 1.09 4.60 2.05 47 BB6R/L-51150-TP55 Ŷ Ŷ Ƒ Ƒ
BHY6…
BHK6… 5.50 16.0 20 18.5 22-16 1.48 0.19 1.24 5.15 2.60 47 BB6R/L-55160-TP55 Ŷ Ŷ Ƒ Ƒ

10.36
