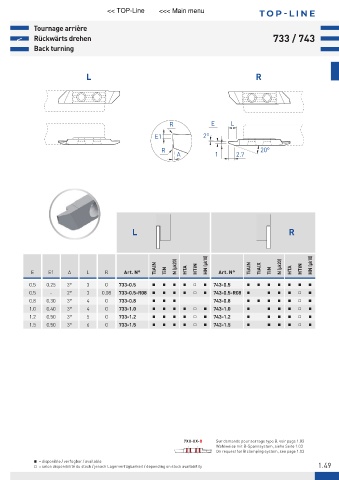

Page 53 - 21-036 APPLITEC catalogue.indb
P. 53
<< TOP-Line <<< Main menu T OP -LINE
Tournage arrière
< Rückwärts drehen 733 / 743
Back turning
L R
R E L
E1 2°
R 20°
A 1 2.7
L R
TiAlN N (μk20) HTA HTiN HN (μk10) TiAlN TiAlX N (μk20) HTA HTiN HN (μk10)
E E1 A L R Art. N° TiN Art. N° TiN
0.5 0.25 3° 3 0 733-0.5 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 743-0.5 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
0.5 - 2° 3 0.08 733-0.5-R08 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 743-0.5-R08 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
0.8 0.30 3° 4 0 733-0.8 Ŷ Ŷ Ŷ 743-0.8 Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.0 0.40 3° 4 0 733-1.0 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 743-1.0 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.2 0.50 3° 5 0 733-1.2 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 743-1.2 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.5 0.50 3° 6 0 733-1.5 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 743-1.5 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
7XX-XX-B Sur demande pour serrage type B, voir page 1.03
Wahlweise mit B-Spannsystem, siehe Seite 1.03
On request for B clamping system, see page 1.03
Ŷ = disponible / verfügbar / available
1.49
Ƒ = selon disponibilité du stock / jenach Lagerverfügbarkeit / depending on stock availability
