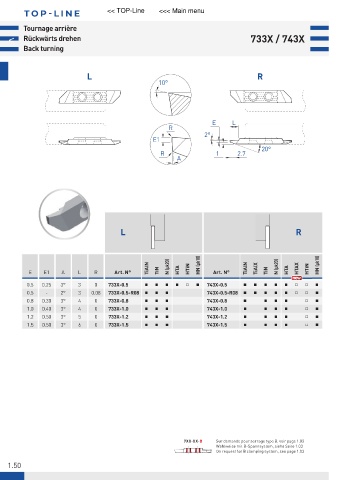

P. 54
T OP -LINE << TOP-Line <<< Main menu
Tournage arrière
< Rückwärts drehen 733X / 743X
Back turning
L R
10°
E L
R
2°
E1
20°
R 1 2.7
A
L R
TiAlN N (μk20) HTA HTiN HN (μk10) TiAlN TiAlX N (μk20) HTA HTAX HTiN HN (μk10)
E E1 A L R Art. N° TiN Art. N° TiN
0.5 0.25 3° 3 0 733X-0.5 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 743X-0.5 Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ƒ Ŷ
0.5 - 2° 3 0.08 733X-0.5-R08 Ŷ Ŷ Ŷ 743X-0.5-R08 Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ƒ Ŷ
0.8 0.30 3° 4 0 733X-0.8 Ŷ Ŷ Ŷ 743X-0.8 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.0 0.40 3° 4 0 733X-1.0 Ŷ Ŷ Ŷ 743X-1.0 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.2 0.50 3° 5 0 733X-1.2 Ŷ Ŷ Ŷ 743X-1.2 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.5 0.50 3° 6 0 733X-1.5 Ŷ Ŷ Ŷ 743X-1.5 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
7XX-XX-B Sur demande pour serrage type B, voir page 1.03
Wahlweise mit B-Spannsystem, siehe Seite 1.03
On request for B clamping system, see page 1.03
1.50
