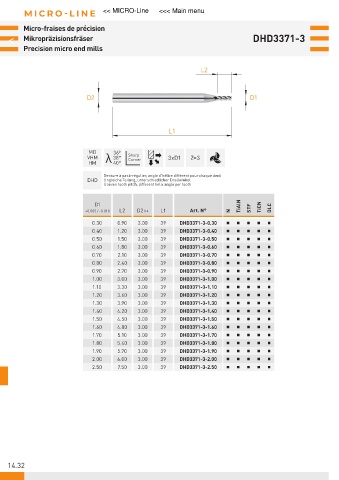

Page 616 - 21-036 APPLITEC catalogue.indb

MICRO-LINE << MICRO-Line <<< Main menu

Micro-fraises de précision
< Mikropräzisionsfräser DHD3371-3
Precision micro end mills

L2

D2 D1

L1

MD 36°
VHM λ 38° Sharp 3xD1 Z=3
Corner
HM 40°
Denture à pas irrégulier, angle d’hélice différent pour chaque dent
DHD Ungleiche Teilung, unterschiedlicher Drallwinkel
Uneven tooth pitch, different helix angle per tooth

D1 TiAlN TiCN
+0.005 / -0.010 L2 D2 h4 L1 Art. N° N STF DLC
0.30 0.90 3.00 39 DHD3371-3-0.30
0.40 1.20 3.00 39 DHD3371-3-0.40
0.50 1.50 3.00 39 DHD3371-3-0.50
0.60 1.80 3.00 39 DHD3371-3-0.60
0.70 2.10 3.00 39 DHD3371-3-0.70
0.80 2.40 3.00 39 DHD3371-3-0.80
0.90 2.70 3.00 39 DHD3371-3-0.90
1.00 3.00 3.00 39 DHD3371-3-1.00
1.10 3.30 3.00 39 DHD3371-3-1.10
1.20 3.60 3.00 39 DHD3371-3-1.20
1.30 3.90 3.00 39 DHD3371-3-1.30
1.40 4.20 3.00 39 DHD3371-3-1.40
1.50 4.50 3.00 39 DHD3371-3-1.50
1.60 4.80 3.00 39 DHD3371-3-1.60
1.70 5.10 3.00 39 DHD3371-3-1.70
1.80 5.40 3.00 39 DHD3371-3-1.80
1.90 5.70 3.00 39 DHD3371-3-1.90
2.00 6.00 3.00 39 DHD3371-3-2.00
2.50 7.50 3.00 39 DHD3371-3-2.50

14.32
