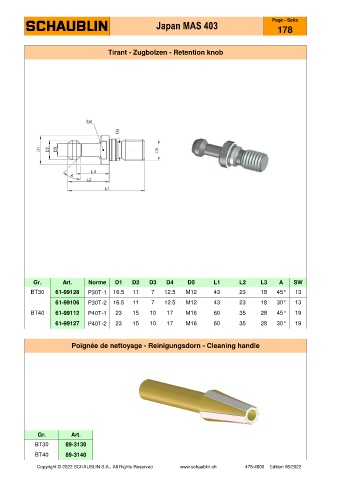

Tirant - Zugbolzen - Retention knob
Gr. Art. Norme D1 D2 D3 D4 D5 L1 L2 L3 A SW
BT30 61-99128 P30T-1 16.5 11 7 12.5 M12 43 23 18 45° 13
61-99106 P30T-2 16.5 11 7 12.5 M12 43 23 18 30° 13
BT40 61-99112 P40T-1 23 15 10 17 M16 60 35 28 45° 19
61-99127 P40T-2 23 15 10 17 M16 60 35 28 30° 19
Poignée de nettoyage - Reinigungsdorn - Cleaning handle
Gr. Art.
BT30 89-3130
BT40 89-3140
