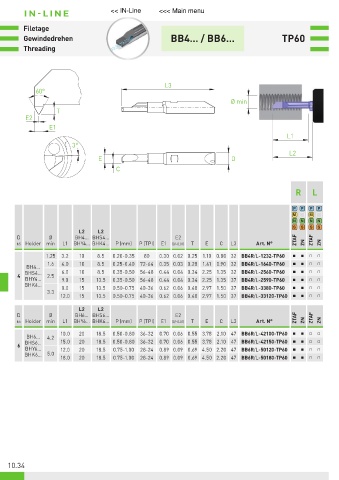

Page 440 - 21-036 APPLITEC catalogue.indb

IN-LINE << IN-Line <<< Main menu

Filetage
Gewindedrehen BB4… / BB6… TP60
Threading

L3
60°
Ø min
T
E2
E1
L1
3°
L2
E D
C

R L

P P P P
M M
N N N N
S S S S
L2 L2
D Ø BH4… BHS4… E2
h5 Holder min L1 BHY4… BHK4… P (mm) P (TPI) E1 (0/-0.01) T E C L3 Art. N° ZTAF ZN ZTAF ZN
1.25 3.2 10 8.5 0.20-0.35 80 0.30 0.02 0.25 1.10 0.80 32 BB4R/L-1232-TP60 Ŷ Ŷ Ƒ Ƒ
1.6 4.0 10 8.5 0.25-0.40 72-64 0.35 0.03 0.28 1.41 0.90 32 BB4R/L-1640-TP60 Ŷ Ŷ Ƒ Ƒ
BH4…
BHS4… 6.0 10 8.5 0.35-0.50 56-48 0.44 0.04 0.34 2.25 1.35 32 BB4R/L-2560-TP60 Ŷ Ŷ Ƒ Ƒ
4 2.5
BHY4… 9.0 15 13.5 0.35-0.50 56-48 0.44 0.04 0.34 2.25 1.35 37 BB4R/L-2590-TP60 Ŷ Ŷ Ƒ Ƒ
BHK4…
8.0 15 13.5 0.50-0.75 40-36 0.62 0.06 0.48 2.97 1.50 37 BB4R/L-3380-TP60 Ŷ Ŷ Ƒ Ƒ
3.3
12.0 15 13.5 0.50-0.75 40-36 0.62 0.06 0.48 2.97 1.50 37 BB4R/L-33120-TP60 Ŷ Ŷ Ƒ Ƒ
L2 L2
D Ø BH6… BHS6… E2
h5 Holder min L1 BHY6… BHK6… P (mm) P (TPI) E1 (0/-0.01) T E C L3 Art. N° ZTAF ZN ZTAF ZN
10.0 20 18.5 0.50-0.80 36-32 0.70 0.06 0.55 3.78 2.10 47 BB6R/L-42100-TP60 Ŷ Ŷ Ƒ Ƒ
BH6… 4.2
BHS6… 15.0 20 18.5 0.50-0.80 36-32 0.70 0.06 0.55 3.78 2.10 47 BB6R/L-42150-TP60 Ŷ Ŷ Ƒ Ƒ
6
BHY6… 12.0 20 18.5 0.75-1.00 28-24 0.89 0.09 0.69 4.50 2.20 47 BB6R/L-50120-TP60 Ŷ Ŷ Ƒ Ƒ
BHK6… 5.0
18.0 20 18.5 0.75-1.00 28-24 0.89 0.09 0.69 4.50 2.20 47 BB6R/L-50180-TP60 Ŷ Ŷ Ƒ Ƒ

10.34
