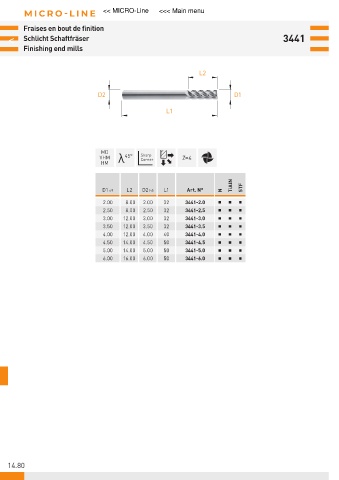

P. 664
MICRO-LINE << MICRO-Line <<< Main menu
Fraises en bout de finition
< Schlicht Schaftfräser 3441
Finishing end mills
L2
D2 D1
L1
MD
VHM λ 45° Sharp Z=4
Corner
HM
TiAlN STF
D1 e9 L2 D2 h5 L1 Art. N° N
2.00 8.00 2.00 32 3441-2.0
2.50 8.00 2.50 32 3441-2.5
3.00 12.00 3.00 32 3441-3.0
3.50 12.00 3.50 32 3441-3.5
4.00 12.00 4.00 40 3441-4.0
4.50 14.00 4.50 50 3441-4.5
5.00 14.00 5.00 50 3441-5.0
6.00 16.00 6.00 50 3441-6.0
14.80
