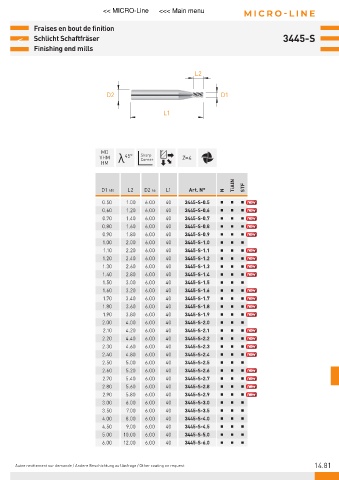

Page 665 - 21-036 APPLITEC catalogue.indb

<< MICRO-Line <<< Main menu MICRO-LINE

Fraises en bout de finition
< Schlicht Schaftfräser 3445-S
Finishing end mills

L2

D2 D1

L1

MD
VHM λ 45° Sharp Z=4
Corner
HM
TiAlN STF
D1 h10 L2 D2 h6 L1 Art. N° N
0.50 1.00 6.00 40 3445-S-0.5
0.60 1.20 6.00 40 3445-S-0.6
0.70 1.40 6.00 40 3445-S-0.7
0.80 1.60 6.00 40 3445-S-0.8
0.90 1.80 6.00 40 3445-S-0.9
1.00 2.00 6.00 40 3445-S-1.0
1.10 2.20 6.00 40 3445-S-1.1
1.20 2.40 6.00 40 3445-S-1.2
1.30 2.60 6.00 40 3445-S-1.3
1.40 2.80 6.00 40 3445-S-1.4
1.50 3.00 6.00 40 3445-S-1.5
1.60 3.20 6.00 40 3445-S-1.6
1.70 3.40 6.00 40 3445-S-1.7
1.80 3.60 6.00 40 3445-S-1.8
1.90 3.80 6.00 40 3445-S-1.9
2.00 4.00 6.00 40 3445-S-2.0
2.10 4.20 6.00 40 3445-S-2.1
2.20 4.40 6.00 40 3445-S-2.2
2.30 4.60 6.00 40 3445-S-2.3
2.40 4.80 6.00 40 3445-S-2.4
2.50 5.00 6.00 40 3445-S-2.5
2.60 5.20 6.00 40 3445-S-2.6
2.70 5.40 6.00 40 3445-S-2.7
2.80 5.60 6.00 40 3445-S-2.8
2.90 5.80 6.00 40 3445-S-2.9
3.00 6.00 6.00 40 3445-S-3.0
3.50 7.00 6.00 40 3445-S-3.5
4.00 8.00 6.00 40 3445-S-4.0
4.50 9.00 6.00 40 3445-S-4.5
5.00 10.00 6.00 40 3445-S-5.0
6.00 12.00 6.00 40 3445-S-6.0

Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 14.81
