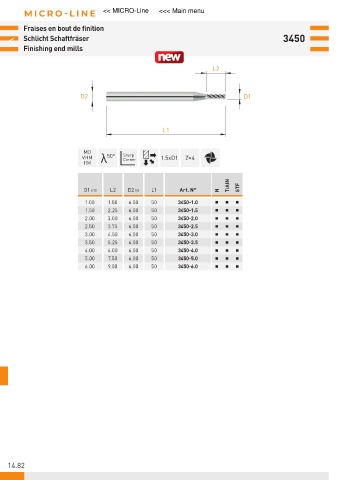

P. 666
MICRO-LINE << MICRO-Line <<< Main menu
Fraises en bout de finition
< Schlicht Schaftfräser 3450
Finishing end mills
L2
D2 D1
L1
MD
VHM λ 50° Sharp 1.5xD1 Z=4
Corner
HM
TiAlN STF
D1 h10 L2 D2 h5 L1 Art. N° N
1.00 1.50 6.00 50 3450-1.0
1.50 2.25 6.00 50 3450-1.5
2.00 3.00 6.00 50 3450-2.0
2.50 3.75 6.00 50 3450-2.5
3.00 4.50 6.00 50 3450-3.0
3.50 5.25 6.00 50 3450-3.5
4.00 6.00 6.00 50 3450-4.0
5.00 7.50 6.00 50 3450-5.0
6.00 9.00 6.00 50 3450-6.0
14.82
