Page - Seite

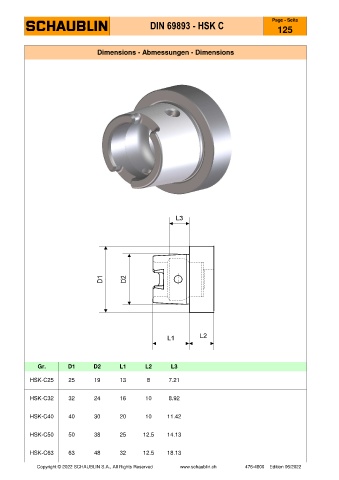

DIN 69893 - HSK C
125
Dimensions - Abmessungen - Dimensions
Gr. D1 D2 L1 L2 L3
HSK-C25 25 19 13 8 7.21
HSK-C32 32 24 16 10 8.92
HSK-C40 40 30 20 10 11.42
HSK-C50 50 38 25 12.5 14.13
HSK-C63 63 48 32 12.5 18.13
