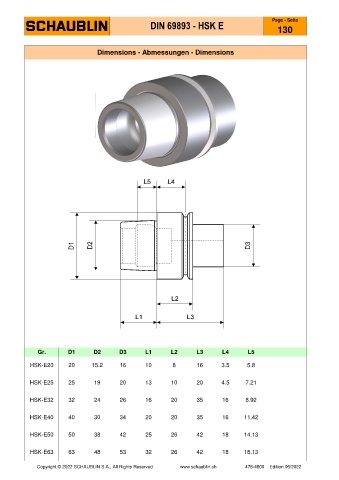

DIN 69893 - HSK E
130
Dimensions - Abmessungen - Dimensions
Gr. D1 D2 D3 L1 L2 L3 L4 L5
HSK-E20 20 15.2 16 10 8 16 3.5 5.8
HSK-E25 25 19 20 13 10 20 4.5 7.21
HSK-E32 32 24 26 16 20 35 16 8.92
HSK-E40 40 30 34 20 20 35 16 11.42
HSK-E50 50 38 42 25 26 42 18 14.13
HSK-E63 63 48 53 32 26 42 18 18.13
