225

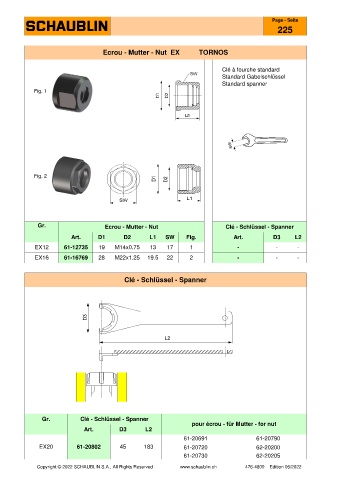

Ecrou - Mutter - Nut EX TORNOS

Clé à fourche standard
Standard Gabelschlüssel
Standard spanner
Fig. 1

Fig. 2

Gr. Ecrou - Mutter - Nut Clé - Schlüssel - Spanner

Art. D1 D2 L1 SW Fig. Art. D3 L2
EX12 61-12735 19 M14x0.75 13 17 1 - - -
EX16 61-16769 28 M22x1.25 19.5 22 2 - - -

Clé - Schlüssel - Spanner

Gr. Clé - Schlüssel - Spanner
pour écrou - für Mutter - for nut
Art. D3 L2
61-20691 61-20790
EX20 61-20802 45 183 61-20720 62-20200
61-20730 62-20205
