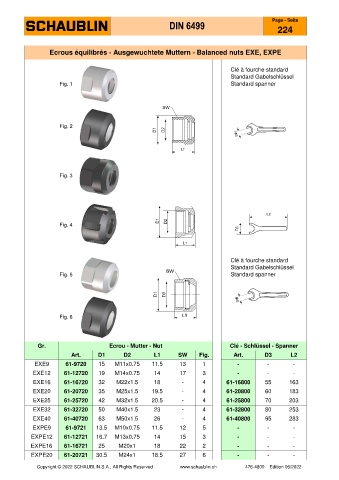

DIN 6499
224
Ecrous équilibrés - Ausgewuchtete Muttern - Balanced nuts EXE, EXPE
Clé à fourche standard
Standard Gabelschlüssel
Fig. 1 Standard spanner
Fig. 2
Fig. 3
Fig. 4
Clé à fourche standard
Standard Gabelschlüssel
Fig. 5 Standard spanner
Fig. 6
Gr. Ecrou - Mutter - Nut Clé - Schlüssel - Spanner
Art. D1 D2 L1 SW Fig. Art. D3 L2
EXE9 61-9720 15 M11x0.75 11.5 13 1 - - -
EXE12 61-12720 19 M14x0.75 14 17 3 - - -
EXE16 61-16720 32 M22x1.5 18 - 4 61-16800 55 163
EXE20 61-20720 35 M25x1.5 19.5 - 4 61-20800 60 183
EXE25 61-25720 42 M32x1.5 20.5 - 4 61-25800 70 203
EXE32 61-32720 50 M40x1.5 23 - 4 61-32800 80 253
EXE40 61-40720 63 M50x1.5 26 - 4 61-40800 95 283
EXPE9 61-9721 13.5 M10x0.75 11.5 12 5 - - -
EXPE12 61-12721 16.7 M13x0.75 14 15 3 - - -
EXPE16 61-16721 25 M20x1 18 22 2 - - -
EXPE20 61-20721 30.5 M24x1 18.5 27 6 - - -
