Page 265 - SCHAUBLIN

Page - Seite
DIN 6499
223.2

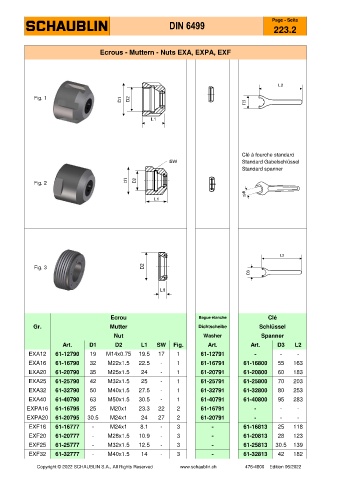

Ecrous - Muttern - Nuts EXA, EXPA, EXF

Fig. 1

Clé à fourche standard
Standard Gabelschlüssel
Standard spanner

Fig. 2

Fig. 3

Ecrou Bague étanche Clé
Gr. Mutter Dichtscheibe Schlüssel
Nut Washer Spanner
Art. D1 D2 L1 SW Fig. Art. Art. D3 L2
EXA12 61-12790 19 M14x0.75 19.5 17 1 61-12791 - - -
EXA16 61-16790 32 M22x1.5 22.5 - 1 61-16791 61-16800 55 163
EXA20 61-20790 35 M25x1.5 24 - 1 61-20791 61-20800 60 183
EXA25 61-25790 42 M32x1.5 25 - 1 61-25791 61-25800 70 203
EXA32 61-32790 50 M40x1.5 27.5 - 1 61-32791 61-32800 80 253
EXA40 61-40790 63 M50x1.5 30.5 - 1 61-40791 61-40800 95 283
EXPA16 61-16795 25 M20x1 23.3 22 2 61-16791 - - -
EXPA20 61-20795 30.5 M24x1 24 27 2 61-20791 - - -
EXF16 61-16777 - M24x1 8.1 - 3 - 61-16813 25 118
EXF20 61-20777 - M28x1.5 10.9 - 3 - 61-20813 28 123
EXF25 61-25777 - M32x1.5 12.5 - 3 - 61-25813 30.5 139
EXF32 61-32777 - M40x1.5 14 - 3 - 61-32813 42 182

Copyright © 2022 SCHAUBLIN S.A., All Rights Reserved www.schaublin.ch 476-4800 Edition 06/2022
