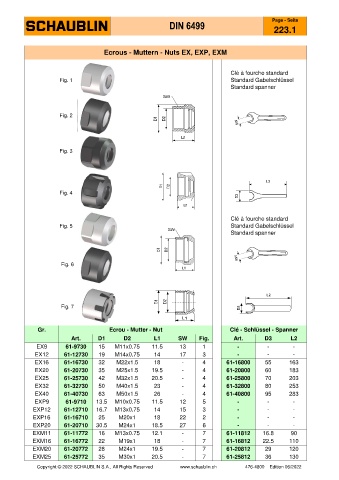

Page 264 - SCHAUBLIN

Page - Seite
DIN 6499
223.1

Ecrous - Muttern - Nuts EX, EXP, EXM

Clé à fourche standard
Fig. 1 Standard Gabelschlüssel
Standard spanner

Fig. 2

Fig. 3

Fig. 4

Clé à fourche standard
Fig. 5 Standard Gabelschlüssel
Standard spanner

Fig. 6

Fig. 7

Gr. Ecrou - Mutter - Nut Clé - Schlüssel - Spanner
Art. D1 D2 L1 SW Fig. Art. D3 L2
EX9 61-9730 15 M11x0.75 11.5 13 1 - - -
EX12 61-12730 19 M14x0.75 14 17 3 - - -
EX16 61-16730 32 M22x1.5 18 - 4 61-16800 55 163
EX20 61-20730 35 M25x1.5 19.5 - 4 61-20800 60 183
EX25 61-25730 42 M32x1.5 20.5 - 4 61-25800 70 203
EX32 61-32730 50 M40x1.5 23 - 4 61-32800 80 253
EX40 61-40730 63 M50x1.5 26 - 4 61-40800 95 283
EXP9 61-9710 13.5 M10x0.75 11.5 12 5 - - -
EXP12 61-12710 16.7 M13x0.75 14 15 3 - - -
EXP16 61-16710 25 M20x1 18 22 2 - - -
EXP20 61-20710 30.5 M24x1 18.5 27 6 - - -
EXM11 61-11772 16 M13x0.75 12.1 - 7 61-11812 16.8 90
EXM16 61-16772 22 M19x1 18 - 7 61-16812 22.5 110
EXM20 61-20772 28 M24x1 19.5 - 7 61-20812 29 120
EXM25 61-25772 35 M30x1 20.5 - 7 61-25812 36 130
Copyright © 2022 SCHAUBLIN S.A., All Rights Reserved www.schaublin.ch 476-4800 Edition 06/2022
