P. 88
Page - Seite
W
42.2

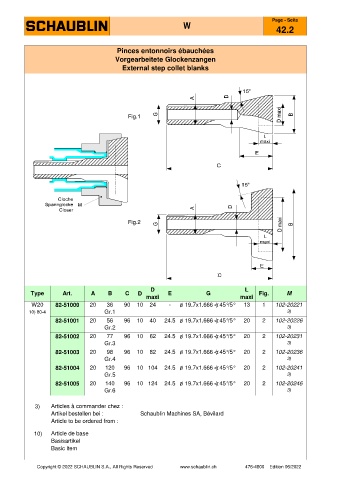

Pinces entonnoirs ébauchées
Vorgearbeitete Glockenzangen
External step collet blanks
Fig.1
Fig.2
D L
Type Art. A B C D E G Fig. M
maxi maxi
W20 82-51000 20 36 90 10 24 - 19.7x1.666 ) 45°/5° 13 1 102-20221
10) 80-4 Gr.1 3)
82-51001 20 56 96 10 40 24.5 19.7x1.666 ) 45°/5° 20 2 102-20226
Gr.2 3)
82-51002 20 77 96 10 62 24.5 19.7x1.666 ) 45°/5° 20 2 102-20231
Gr.3 3)
82-51003 20 98 96 10 82 24.5 19.7x1.666 ) 45°/5° 20 2 102-20236
Gr.4 3)
82-51004 20 120 96 10 104 24.5 19.7x1.666 ) 45°/5° 20 2 102-20241
Gr.5 3)
82-51005 20 140 96 10 124 24.5 19.7x1.666 ) 45°/5° 20 2 102-20246
Gr.6 3)
3) Articles à commander chez :
Artikel bestellen bei : Schaublin Machines SA, Bévilard
Article to be ordered from :
10) Article de base
Basisartikel
Basic item
