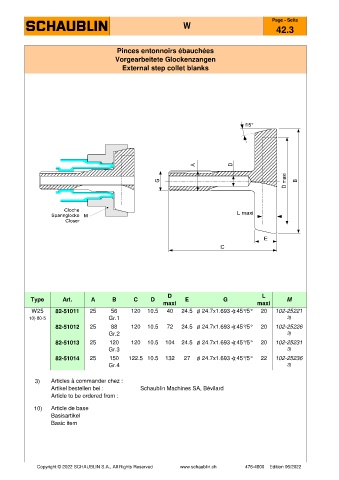

Pinces entonnoirs ébauchées
Vorgearbeitete Glockenzangen
External step collet blanks
D L
Type Art. A B C D E G M
maxi maxi
W25 82-51011 25 56 120 10.5 40 24.5 24.7x1.693 ) 45°/5° 20 102-25221
10) 80-5 Gr.1 3)
82-51012 25 88 120 10.5 72 24.5 24.7x1.693 ) 45°/5° 20 102-25226
Gr.2 3)
82-51013 25 120 120 10.5 104 24.5 24.7x1.693 ) 45°/5° 20 102-25231
Gr.3 3)
82-51014 25 150 122.5 10.5 132 27 24.7x1.693 ) 45°/5° 22 102-25236
Gr.4 3)
3) Articles à commander chez :
Artikel bestellen bei : Schaublin Machines SA, Bévilard
Article to be ordered from :
10) Article de base
Basisartikel
Basic item
