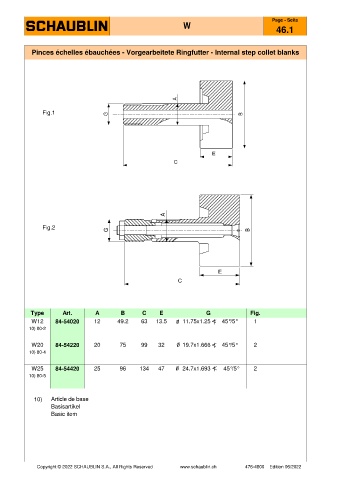

Page 93 - SCHAUBLIN
P. 93
Page - Seite
W
46.1
Pinces échelles ébauchées - Vorgearbeitete Ringfutter - Internal step collet blanks
Fig.1
Fig.2
Type Art. A B C E G Fig.
W12 84-54020 12 49.2 63 13.5 11.75x1.25 ) 45°/5° 1
10) 80-2
W20 84-54220 20 75 99 32 19.7x1.666 ) 45°/5° 2
10) 80-4
W25 84-54420 25 96 134 47 24.7x1.693 ) 45°/5° 2
10) 80-5
10) Article de base
Basisartikel
Basic item
Copyright © 2022 SCHAUBLIN S.A., All Rights Reserved www.schaublin.ch 476-4800 Edition 06/2022
