W
57.1

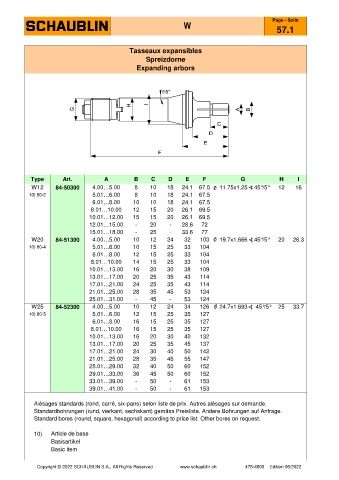

Tasseaux expansibles
Spreizdorne
Expanding arbors

Type Art. A B C D E F G H I
W12 84-50300 4.00…5.00 8 10 18 24.1 67.5 11.75x1.25 ) 45°/5° 12 16
10) 80-2 5.01…6.00 8 10 18 24.1 67.5
6.01…8.00 10 10 18 24.1 67.5
8.01…10.00 12 15 20 26.1 69.5
10.01…12.00 15 15 20 26.1 69.5
12.01…15.00 - 20 - 28.6 72
15.01…18.00 - 25 - 33.6 77
W20 84-51300 4.00…5.00 10 12 24 32 103 19.7x1.666 ) 45°/5° 20 26.3
10) 80-4 5.01…6.00 10 15 25 33 104
6.01…8.00 12 15 25 33 104
8.01…10.00 14 15 25 33 104
10.01…13.00 16 20 30 38 109
13.01…17.00 20 25 35 43 114
17.01…21.00 24 25 35 43 114
21.01…25.00 28 35 45 53 124
25.01…31.00 - 45 - 53 124
W25 84-52300 4.00…5.00 10 12 24 34 126 24.7x1.693 ) 45°/5° 25 33.7
10) 80-5 5.01…6.00 12 15 25 35 127
6.01…8.00 16 15 25 35 127
8.01…10.00 16 15 25 35 127
10.01…13.00 16 20 30 40 132
13.01…17.00 20 25 35 45 137
17.01…21.00 24 30 40 50 142
21.01…25.00 28 35 45 55 147
25.01…29.00 32 40 50 60 152
29.01…33.00 36 45 50 60 152
33.01…39.00 - 50 - 61 153
39.01…41.00 - 50 - 61 153

Alésages standards (rond, carré, six-pans) selon liste de prix. Autres alésages sur demande.
Standardbohrungen (rund, vierkant, sechskant) gemäss Preisliste. Andere Bohrungen auf Anfrage.
Standard bores (round, square, hexagonal) according to price list. Other bores on request.

10) Article de base
Basisartikel
Basic item
