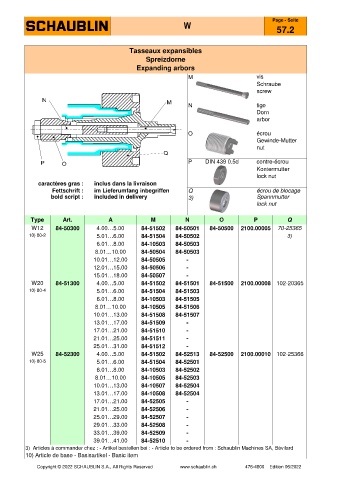

P. 104
Page - Seite
W
57.2
Tasseaux expansibles
Spreizdorne
Expanding arbors
M vis
Schraube
screw
N tige
Dorn
arbor
O écrou
Gewinde-Mutter
nut
P DIN 439 0.5d contre-écrou
Kontermutter
lock nut
caractères gras : inclus dans la livraison
Fettschrift : im Lieferumfang inbegriffen Q écrou de blocage
bold script : included in delivery 3) Spannmutter
lock nut
Type Art. A M N O P Q
W12 84-50300 4.00…5.00 84-51502 84-50501 84-50500 2100.00005 70-25365
10) 80-2 5.01…6.00 84-51504 84-50502 3)
6.01…8.00 84-10503 84-50503
8.01…10.00 84-50504 84-50503
10.01…12.00 84-50505 -
12.01…15.00 84-50506 -
15.01…18.00 84-50507 -
W20 84-51300 4.00…5.00 84-51502 84-51501 84-51500 2100.00008 102-20365
10) 80-4 5.01…6.00 84-51504 84-51503
6.01…8.00 84-10503 84-51505
8.01…10.00 84-10505 84-51506
10.01…13.00 84-51508 84-51507
13.01…17.00 84-51509 -
17.01…21.00 84-51510 -
21.01…25.00 84-51511 -
25.01…31.00 84-51512 -
W25 84-52300 4.00…5.00 84-51502 84-52513 84-52500 2100.00010 102-25366
10) 80-5 5.01…6.00 84-51504 84-52501
6.01…8.00 84-10503 84-52502
8.01…10.00 84-10505 84-52503
10.01…13.00 84-10507 84-52504
13.01…17.00 84-10508 84-52504
17.01…21.00 84-52505 -
21.01…25.00 84-52506 -
25.01…29.00 84-52507 -
29.01…33.00 84-52508 -
33.01…39.00 84-52509 -
39.01…41.00 84-52510 -
3) Articles à commander chez : - Artikel bestellen bei : - Article to be ordered from : Schaublin Machines SA, Bévilard
10) Article de base - Basisartikel - Basic item
Copyright © 2022 SCHAUBLIN S.A., All Rights Reserved www.schaublin.ch 476-4800 Edition 06/2022
