F
16.1

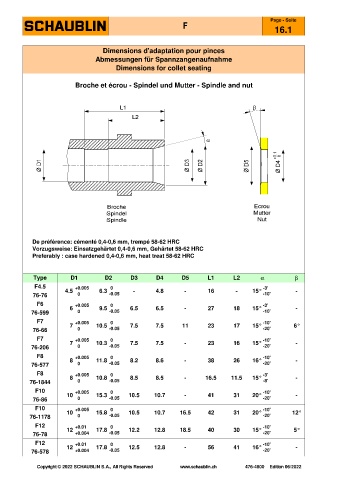

Dimensions d'adaptation pour pinces
Abmessungen für Spannzangenaufnahme
Dimensions for collet seating
Broche et écrou - Spindel und Mutter - Spindle and nut
De préférence: cémenté 0,4-0,6 mm, trempé 58-62 HRC
Vorzugsweise: Einsatzgehärtet 0,4-0,6 mm, Gehärtet 58-62 HRC
Preferably : case hardened 0,4-0,6 mm, heat treat 58-62 HRC
Type D1 D2 D3 D4 D5 L1 L2 a b
F4.5 +0.005 0 -3'
4.5 6.3 - 4.8 - 16 - 15° -
76-76 0 -0.05 -10'
F6 +0.005 0 -3'
6 9.5 6.5 6.5 - 27 18 15° -
76-599 0 -0.05 -10'
F7 +0.005 0 -10'
7 10.5 7.5 7.5 11 23 17 15° 6°
76-66 0 -0.05 -20'
F7 +0.005 0 -10'
7 10.3 7.5 7.5 - 23 16 15° -
76-206 0 -0.05 -20'
F8 +0.005 0 -10'
8 11.8 8.2 8.6 - 38 26 16° -
76-577 0 -0.05 -20'
F8 +0.005 0 -3'
8 10.8 8.5 8.5 - 16.5 11.5 15° -
76-1844 0 -0.05 -8'
F10 +0.005 0 -10'
10 15.3 10.5 10.7 - 41 31 20° -
76-86 0 -0.05 -20'
F10 +0.005 0 -10'
10 15.8 10.5 10.7 16.5 42 31 20° 12°
76-1178 0 -0.05 -20'
F12 +0.01 0 -10'
12 17.8 12.2 12.8 18.5 40 30 15° 5°
76-78 +0.004 -0.05 -20'
F12 +0.01 0 -10'
12 17.8 12.5 12.8 - 56 41 16° -
76-578 +0.004 -0.05 -20'
