Page 43 - SCHAUBLIN

Page - Seite
F
16.2

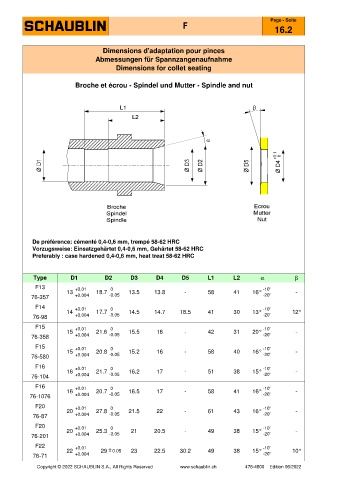

Dimensions d'adaptation pour pinces
Abmessungen für Spannzangenaufnahme
Dimensions for collet seating

Broche et écrou - Spindel und Mutter - Spindle and nut

De préférence: cémenté 0,4-0,6 mm, trempé 58-62 HRC
Vorzugsweise: Einsatzgehärtet 0,4-0,6 mm, Gehärtet 58-62 HRC
Preferably : case hardened 0,4-0,6 mm, heat treat 58-62 HRC

Type D1 D2 D3 D4 D5 L1 L2 a b
F13 +0.01 0 -10'
13 18.7 13.5 13.8 - 58 41 16° -
76-357 +0.004 -0.05 -20'
F14 +0.01 0 -10'
14 17.7 14.5 14.7 18.5 41 30 13° 12°
76-98 +0.004 -0.05 -20'
F15 +0.01 0 -10'
15 21.6 15.5 16 - 42 31 20° -
76-358 +0.004 -0.05 -20'

F15 +0.01 0 -10'
15 20.8 15.2 16 - 58 40 16° -
76-580 +0.004 -0.05 -20'
F16 +0.01 0 -10'
16 21.7 -0.05 16.2 17 - 51 38 15° -20' -
76-104 +0.004
F16 +0.01 0 -10'
16 20.7 16.5 17 - 58 41 16° -
76-1076 +0.004 -0.05 -20'

F20 +0.01 0 -10'
20 27.8 21.5 22 - 61 43 16° -
76-87 +0.004 -0.05 -20'
F20 +0.01 0 -10'
20 25.3 21 20.5 - 49 38 15° -
76-201 +0.004 -0.05 -20'
F22 +0.01 -10'
+
22 29 - 0.05 23 22.5 30.2 49 38 15° 10°
76-71 +0.004 -20'
Copyright © 2022 SCHAUBLIN S.A., All Rights Reserved www.schaublin.ch 476-4800 Edition 06/2022
