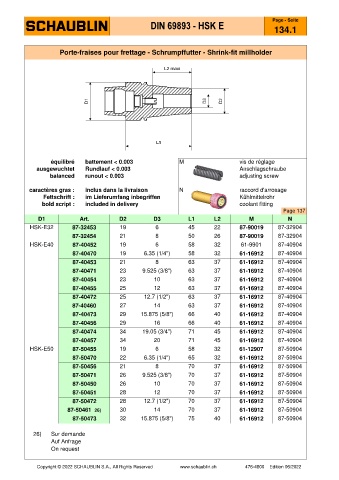

Page 188 - SCHAUBLIN

Page - Seite
DIN 69893 - HSK E
134.1

Porte-fraises pour frettage - Schrumpffutter - Shrink-fit millholder

équilibré battement < 0.003 M vis de réglage
ausgewuchtet Rundlauf < 0.003 Anschlagschraube
balanced runout < 0.003 adjusting screw

caractères gras : inclus dans la livraison N raccord d'arrosage
Fettschrift : im Lieferumfang inbegriffen Kühlmittelrohr
bold script : included in delivery coolant fitting
Page 137
D1 Art. D2 D3 L1 L2 M N
HSK-E32 87-32453 19 6 45 22 87-90019 87-32904
87-32454 21 8 50 26 87-90019 87-32904
HSK-E40 87-40452 19 6 58 32 61-9901 87-40904
87-40470 19 6.35 (1/4") 58 32 61-16912 87-40904
87-40453 21 8 63 37 61-16912 87-40904
87-40471 23 9.525 (3/8") 63 37 61-16912 87-40904
87-40454 23 10 63 37 61-16912 87-40904
87-40455 25 12 63 37 61-16912 87-40904
87-40472 25 12.7 (1/2") 63 37 61-16912 87-40904
87-40460 27 14 63 37 61-16912 87-40904
87-40473 29 15.875 (5/8") 66 40 61-16912 87-40904
87-40456 29 16 66 40 61-16912 87-40904
87-40474 34 19.05 (3/4") 71 45 61-16912 87-40904
87-40457 34 20 71 45 61-16912 87-40904
HSK-E50 87-50455 19 6 58 32 61-12907 87-50904
87-50470 22 6.35 (1/4") 65 32 61-16912 87-50904
87-50456 21 8 70 37 61-16912 87-50904
87-50471 26 9.525 (3/8") 70 37 61-16912 87-50904
87-50450 26 10 70 37 61-16912 87-50904
87-50451 28 12 70 37 61-16912 87-50904
87-50472 28 12.7 (1/2") 70 37 61-16912 87-50904
87-50461 26) 30 14 70 37 61-16912 87-50904
87-50473 32 15.875 (5/8") 75 40 61-16912 87-50904

26) Sur demande
Auf Anfrage
On request
