Page - Seite
E
208

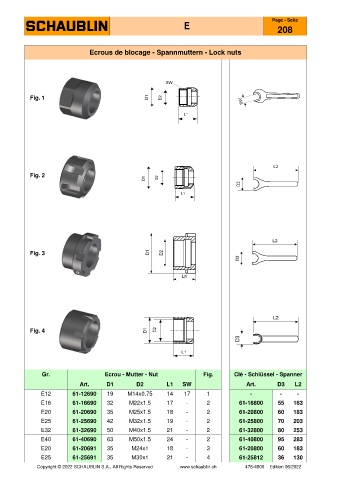

Ecrous de blocage - Spannmuttern - Lock nuts

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Gr. Ecrou - Mutter - Nut Fig. Clé - Schlüssel - Spanner
Art. D1 D2 L1 SW Art. D3 L2
E12 61-12690 19 M14x0.75 14 17 1 - - -
E16 61-16690 32 M22x1.5 17 - 2 61-16800 55 163
E20 61-20690 35 M25x1.5 18 - 2 61-20800 60 183
E25 61-25690 42 M32x1.5 19 - 2 61-25800 70 203
E32 61-32690 50 M40x1.5 21 - 2 61-32800 80 253
E40 61-40690 63 M50x1.5 24 - 2 61-40800 95 283
E20 61-20691 35 M24x1 18 - 3 61-20800 60 183
E25 61-25691 35 M30x1 21 - 4 61-25812 36 130
Copyright © 2022 SCHAUBLIN S.A., All Rights Reserved www.schaublin.ch 476-4800 Edition 06/2022
