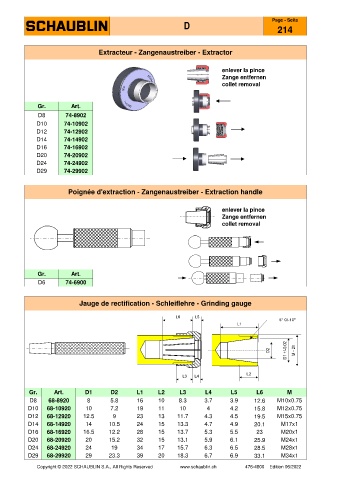

P. 259
Page - Seite
D
214
Extracteur - Zangenaustreiber - Extractor
enlever la pince
Zange entfernen
collet removal
Gr. Art.
D8 74-8902
D10 74-10902
D12 74-12902
D14 74-14902
D16 74-16902
D20 74-20902
D24 74-24902
D29 74-29902
Poignée d'extraction - Zangenaustreiber - Extraction handle
enlever la pince
Zange entfernen
collet removal
Gr. Art.
D6 74-6900
Jauge de rectification - Schleiflehre - Grinding gauge
Gr. Art. D1 D2 L1 L2 L3 L4 L5 L6 M
D8 68-8920 8 5.8 16 10 8.3 3.7 3.9 12.6 M10x0.75
D10 68-10920 10 7.2 19 11 10 4 4.2 15.8 M12x0.75
D12 68-12920 12.5 9 23 13 11.7 4.3 4.5 19.5 M15x0.75
D14 68-14920 14 10.5 24 15 13.3 4.7 4.9 20.1 M17x1
D16 68-16920 16.5 12.2 28 15 13.7 5.3 5.5 23 M20x1
D20 68-20920 20 15.2 32 15 13.1 5.9 6.1 25.9 M24x1
D24 68-24920 24 19 34 17 15.7 6.3 6.5 28.5 M28x1
D29 68-29920 29 23.3 39 20 18.3 6.7 6.9 33.1 M34x1
Copyright © 2022 SCHAUBLIN S.A., All Rights Reserved www.schaublin.ch 476-4800 Edition 06/2022
